Crane Boss® TITAN Series 1100, 1200, 1300

Clear
Category:

Digital Radio Remote Controls for Industrial Applications

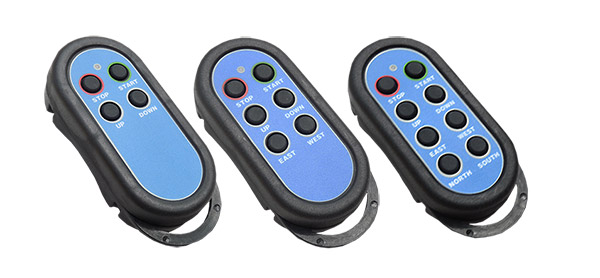

Series 1100 4 pushbuttons – Start, Stop, Up/Down
Series 1200 6 pushbuttons – Start, Stop, Up/Down, East/West
Series 1300 8 pushbuttons – Start, Stop, Up/Down, East/West, North/South

Features

  • Rugged, Indoor/Outdoor use (drip proof)
  • Light weight design (6 oz. with batteries)
  • Low power indicator
  • Long distance operation for up to 300 + feet
  • Advanced circuitry with over 4 Billion I.D. Codes
  • Frequency: 422-433 MHz, over 100 channels

Description

General Specifications
Frequencies 422-433 MHz, over 100 channels
I.D. Code 32-bit, over 4 billion codes
Range 300 + feet
Operating temperature -40 to 150F
Modulation FM
Phase lock loop technology
Transmitter Specifications
Housing Impact resistant design – Glass filled nylon
Dimensions (in inches) L 5.5 x W 2.5 x D 1.25
Nominal power consumption <10mA
Sleep mode consumption 0.5mA
Weight 6.1 oz. (with batteries)
Two AA Alkaline or rechargeable batteries
Low battery indicator
Receiver Specifications
Nominal current draw 11mA/ 15.0 VA at 120V AC
Dimensions (in inches) L 7 x W 7 x D 3.5 (without antenna)
Weight 1 lb. 13 oz.
Shock resistant mounting posts
Multi-level watch-dog circuits
Dry contact relays – 10 Amp
Alarm relay output

Additional information

Model

Series 1100, Series 1200, Series 1300
