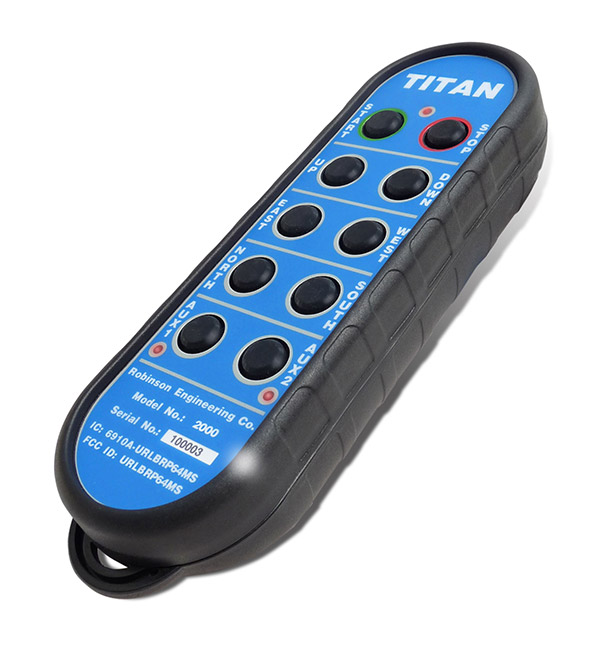

Crane Boss® TITAN 2000 Series

Category:

Digital Radio Remote Controls for Industrial Applications

10 pushbuttons – Start/Stop, Up/Down, East/West, North/South, Aux 1 & 2
(3 – Motion, 2-Step
with Trolley/ Hoist Select 1/ Both /2)

  • Rugged, Indoor/Outdoor use (drip proof)
  • Light weight design (13 oz. with batteries)
  • Low power indicator
  • Two LED’s for “Trolley/Hoist Select” indicators
  • Long distance operation for up to 300 + feet
  • Advanced circuitry with over 4 Billion I.D. Codes
  • Frequency: 422-433 MHz, over 100 channels

Description

General Specifications
Frequencies 422-433 MHz, over 100 channels
I.D. Code 32-bit, over 4 billion codes
Range 300 + feet
Operating temperature -40 to 150F
Modulation FM
Phase lock loop technology
Transmitter Specifications
Housing Impact resistant design – Glass filled nylon
Dimensions (in inches) L 9 x W 2.6 x D 2
Nominal power consumption <10mA
Sleep mode consumption 0.5mA
Weight 13 oz. (with batteries)
Four AA Alkaline or rechargeable option
LED indicators for Aux 1 & 2 pushbuttons
Low battery indicator
Receiver Specifications
Nominal current draw 110mA/ 15.0 VA at 120V AC
Dimensions (in inches) L 11.63 x W 9.41 x D 4.25 (without antenna)
Weight 5.8 lbs.
NEMA 4 fiberglass enclosure (indoor/outdoor)
Provisions for dual motor hoist (4-wire)
Multi-level watch-dog circuits
Dry contact relays – 10 Amp
Alarm relay output
